Key Features

• Fixed camera and PT camera integration, dual channels with one IP, look at overall situation and consider details at the same time

• Ultra 265, H.265, H.264

• Support digital WDR (Wide Dynamic Range)

• Built-in Mic & Speaker, support two-way audio, offer better interaction

• Support sound and light warning, makes warning and alarming more noticeable

• Smart IR, up to 10m (33ft) IR and 10m (33ft) warm light distance, suitable for more scenes

• IR & warm light illumination to deal with different scenes and achieve full-color illumination

• Supports 512 GB Micro SD card

• Wi-Fi connection and easy installation

Specifications

Drag left and right to view

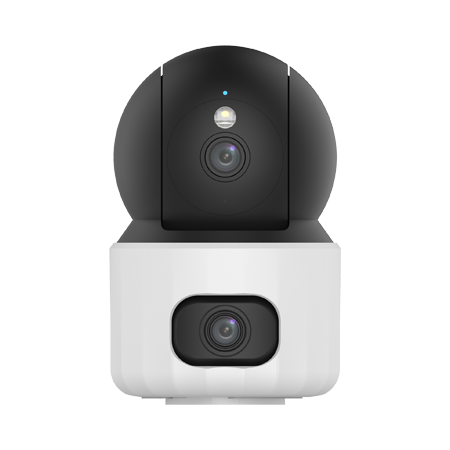

	Uho-S3S-M33D
Camera	Panorama			Detail
Sensor	1/2.8" progressive scan, 3.0 megapixel, CMOS			1/2.8" progressive scan, 3.0 megapixel, CMOS
Min. Illumination	Colour:0.01 lux (F2.0,AGC ON) 0 lux with IR			Colour:0.01 lux (F2.0,AGC ON) 0 lux with IR
Day/Night	IR-cut filter with auto switch (ICR)			IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, shutter time: 1s ~ 1/100000s
WDR	DWDR
S/N	>52dB
Lens
Lens type	4.0mm@F2.0			4.0mm@F2.0
Digital Zoom	N/A			4X
Iris	Fixed			Fixed
Field of View (H)	91.5°			91.5°
Field of View (V)	48.1°			48.1°
Field of View (D)	96.3°			96.3°
DORI
DORI Distance	Lens (mm)	Detect (m)	Observe (m)		Recognize (m)	Identify (m)
	4.0 mm	73.5 (241.0ft)	29.4 (96.4ft)		14.7 (48.2ft)	7.3(24.1ft)
	4.0 mm	73.5 (241.0ft)	29.4 (96.4ft)		14.7 (48.2ft)	7.3(24.1ft)
Illuminator
IR Range	Up to 10m (33ft)			Up to 10m (33ft)
Warm Light Range	N/A			Up to 10m (33ft)
Wavelength	850nm
IR On/Off Control	Auto/Manual
Video
Video Compression	Ultra 265, H.265, H.264
Frame Rate	Main Stream: 3MP (23041296), Max 15fps; 2MP (19201080), Max 15fps; 720P (1280720), Max 15fps; Sub Stream: 640360,Max 15fps; 2CIF(704288), Max 15fps; CIF(352288), Max 15fps;			Main Stream: 3MP (23041296), Max 15fps; 2MP (19201080), Max 15fps; 720P (1280720), Max 15fps; Sub Stream: 640360,Max 15fps; 2CIF(704288), Max 15fps; CIF(352288), Max 15fps;
Video Bit Rate	128 Kbps~2048 Kbps
ROI	Up to 8 areas
Video Stream	Dual streams
OSD	Up to 4 OSDs
Privacy Mask	Support(Only NVR)
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Flip Vertical/Flip Horizontal/180°
HLC	N/A
BLC	N/A
Defog	Digital Defog
Events
Basic Detection	Motion detection, Ultra motion detection(pedestrian/motor vehicle/pet), Loud Sound Detection, Crying detection, Tampering alarm
Auto tracking	N/A			Support
General Function	IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Audio
Audio Compression	G.711U,G.711A
Audio Bitrate	64 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz
Storage
Edge Storage	Micro SD, up to 512 GB
Network Storage	ANR
Network
Wi-Fi	2.4G Wi-Fi (IEEE802.11b/g/n/ax), built-in antenna
Protocols	IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP
Compatible Integration	API
Client	Uniarch Client Uniarch APP
Web Browser	Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Wi-Fi
Wireless Standards	IEEE802.11b/g/n/ax
Frequency Range	2.4GHz~2.4835GHz
Channel Bandwidth	20/40 MHz Support
Modulation Mode	802.11b: CCK 802.11g/n: OFDM 802.11ax: OFDMA
Security	64/128-bitWEP,WPA-PSK/WPA2-PSK
Transmit Power	802.11b: 17±1.5dBm @11Mbps 802.11g: 16±1.5dBm @ 54Mbps 802.11n: 16±1.5dBm @MCS7 802.11ax: 16±1.5dBm @MCS9
Receive Sensitivity	802.11b: -76dBm @11Mbps (Typical) 802.11g: -65dBm @54Mbps (Typical) 802.11n: -61dBm @MCS7,HT40(Typical) 802.11ax: -54dBm @MCS9,HE40(Typical)
Transmission Rate	802.11b: 11Mbps 802.11g: 54Mbps 802.11n: up to 150Mbps 802.11ax: up to 270Mbps
Pan & Tilt
Pan Range	N/A			0° ~ 355°
Pan Speed	N/A			17°/s ~ 50°/s
	Preset speed: N/A			Preset speed: 50°/s
Tilt Range	0° ~ 15°			-15° ~ 90°
Tilt Speed	N/A			17°/s ~ 50°/s
	Preset speed: N/A			Preset speed: 50°/s
Number of Presets	20
Interface
Built-in Mic	Support
Built-in Speaker	Support
Wi-Fi	Support
Network	1 * RJ45 10M/100M Base-TX Ethernet
Certifications
EMC	CE EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B)
RF	FCC ID (FCC CFR 47 part15 C) CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311)
Safety	CE LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
General
Power	DC 5V/1.5A
	USB type-C interface
Dimensions (Ø x H)	Φ80 x 127mm (Ø3.1” x 4.8”)
Weight	0.22kg(0.49lb)
Working Environment	-10℃~50℃(-14°F ~ 122°F)，Humidity: ≤95% RH (non-condensing)
Storage Environment	-10℃~50℃(-14°F ~ 122°F)，Humidity: ≤95% RH (non-condensing)
Surge Protection	N/A
Reset Button	Support
LED indicator	1, red/blue
