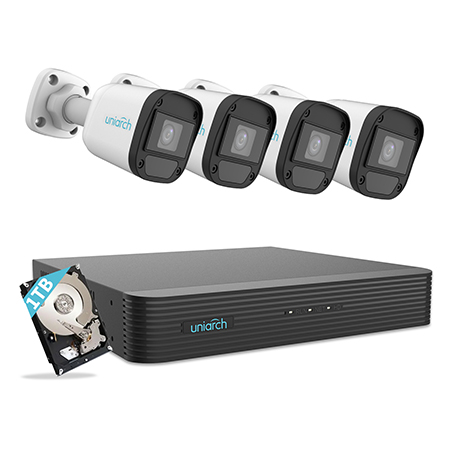

Analog Video Input

8-ch, BNC

IP Video Input

4-ch( only IP up to 8ch), each channel up to 4MP

Supported Analog Camera Types

Support AHD input:

5MP@12fps

4MP@15fps

1080P@30fps

720P@30fps

Support TVI input:

5MP@12fps

4MP@15fps

1080P@30fps

720P@30fps

Support CVI input:

1080P@30fps

720P@30fps

Support CVBS input

Audio Input

1-ch, RCA

Audio Compression

G.711U

Incoming Bandwidth

32Mbps (Up to 40Mbps after all analog channel conversion)

Outgoing Bandwidth

64Mbps

Remote Users

128

Protocols

TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP

Browser

IE10/11 for Windows

VGA Output

1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

HDMI Output

1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

Audio Output

1-ch, RCA

Synchronous Playback

HD:4-ch

SD:8-ch

Live view display

HDMI/VGA: 1/4/6/8/9/10/16

Two-way Audio

1-ch, RCA

FTP/Schedule/Event Snapshot

Schedule snapshot is not supported

8-ch snapshot, up to 704*576 resolution

Recording Resolution

5MP Lite/4MP Lite /1080P Lite/720P/CIF

Recording Frame Rate

Main stream:

Sub stream:

5MP Lite@6fps

D1@6fps

4MP Lite@8fps

D1@8fps

1080P Lite@12fps

D1@12fps

720P@12fps

D1@12fps

Audio Sample Rate

8KHz,16 bit per channel

Audio Bit Rate

64Kbps per channel

Capability

Analog: 4 x 5MP Lite@6, 4 x 4MP Lite@8, 4 x 1080P Lite @12fps

IP: 1 x 4MP@30, 2 x 1080P@30

Hard Disk

SATA

1 SATA interface

Capacity

Up to 8TB for each HDD

(The maximum HDD capacity varies with environment temperature)

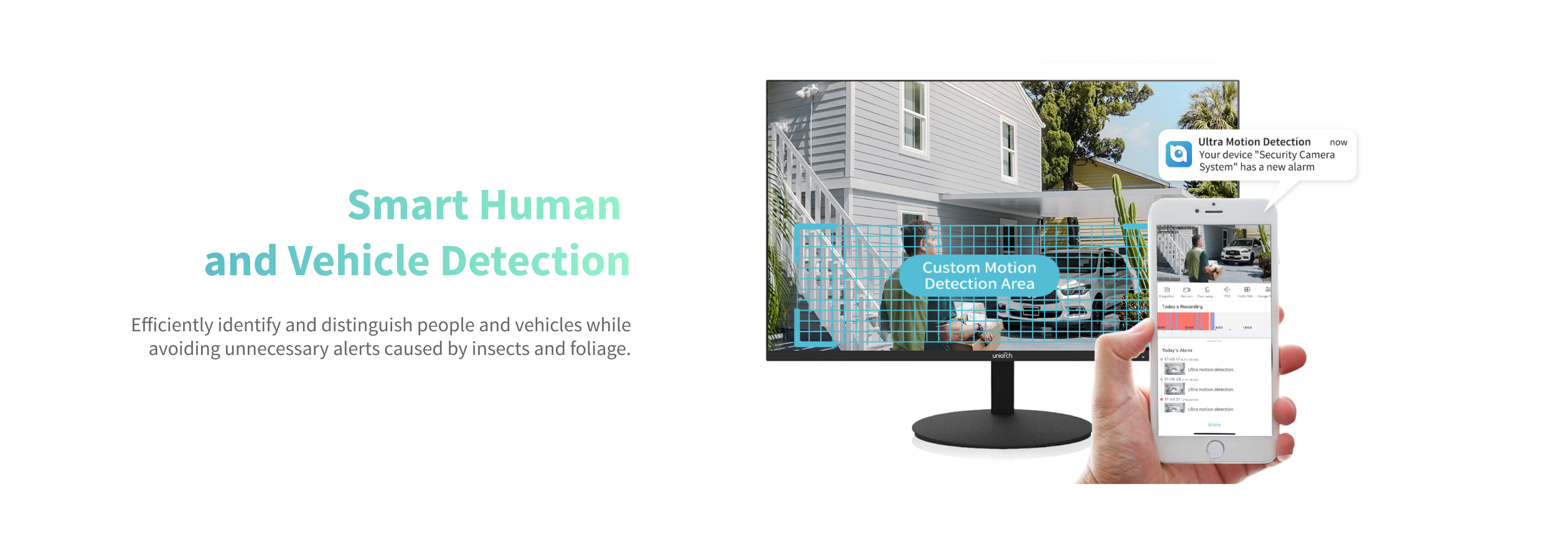

VCA Detection

Ultra Motion Detection(UMD) for analog:4-ch

VCA Search

Behavior Search

General Alarm

By analog camera: Motion detection

Alert Alarm

IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access

External Interface

Network Interface

1RJ45 10M/100M self-adaptive Ethernet Interface

USB Interface

Rear panel:2 x USB2.0

Power Supply

12V DC

Power Consumption: ≤ 8 W( without HDD )

Working Environment

-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)

Dimensions(W×D×H)

260mm × 218mm × 47mm (10.2" × 8.6" × 1.9")

Weight ( without HDD )

≤1.1 Kg ( 2.42lb )

Certification

CE/FCC/WEEE

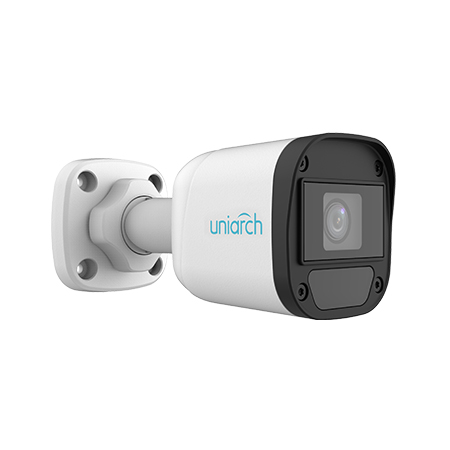

Pixel

2MP

Size

1/3"

Minimum Illumination

0.02 lux (F2.0, AGC ON)

0 lux (IR on)

Lens

2.8mm

Lens Mount

M12

Angle of View

H: 90.5°  V: 49.6°  D: 109.5°

Illuminator

One IR illuminator

Illumination Distance

20m

Lifetime

≥60,000 hours

Resolution

1080P: 1920(H)×1080(V)

720P: 1280(H) ×720(V)

Frame Rate

TVI/AHD/CVI: 1080P@30fps(default), 1080P@25fps; 720P@30fps ,720P@25fps

CVBS: PAL, NTSC

Shutter Time

PAL: 1/25s-1/50000s

NTSC: 1/30s–1/50000s

Exposure Mode

4 modes: Global (default), BLC, HLC, DWDR

Day/Night

3 modes: Auto (default), Day, Night

Digital Noise Reduction

2D

White Balance

Two modes: Auto (default), Manual

WDR

DWDR

Smart IR

Support

Flip

Supports 180° horizontal flip, 180° vertical flip

Power

5.5mm power interface

Video Output

BNC, supports TVI/AHD/CVI/CVBS

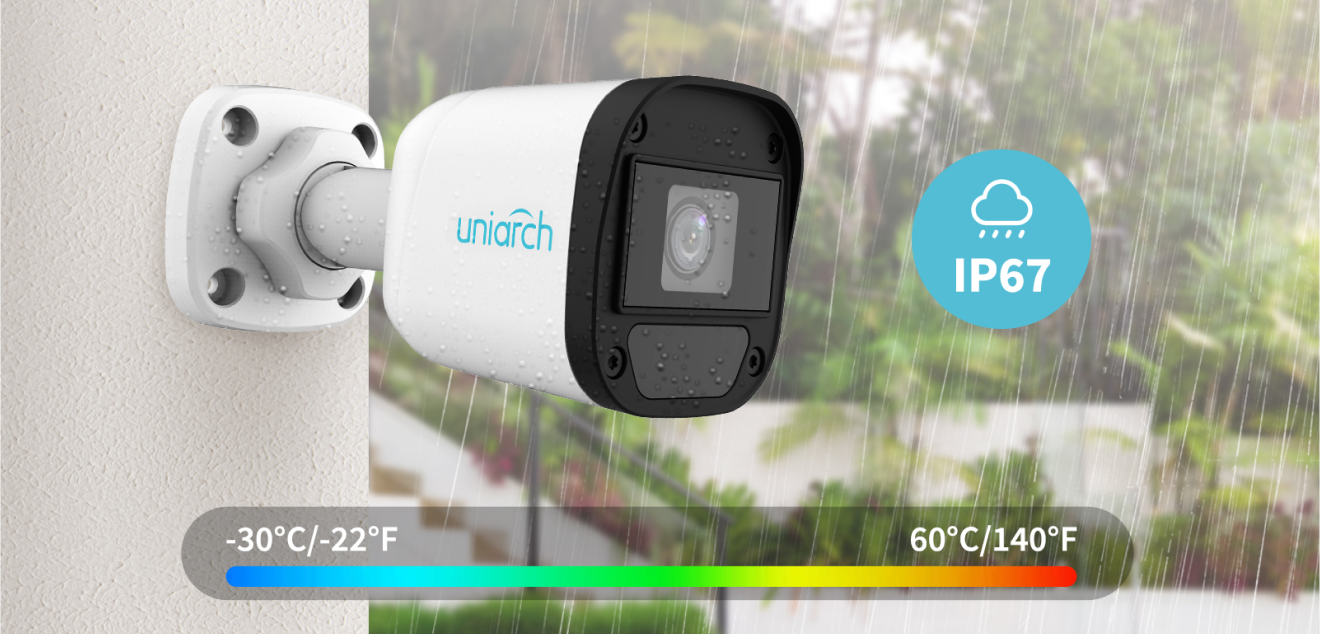

Temperature

-30℃ to 60℃(-22℉ to 140℉)

Humidity

≤95% (RH, non-condensing)

Surge Protection

4KV

Ingress Protection

IP67

Power

DC 12V(±25%), with reverse polarity protection, Max 2.88W

Mount

3D bracket supplied, surface mount (default), optional backbox, pole mount bracket

Dimensions

142mm*63mm*65mm (L*W*H)

Material

Plastic

Weight

135g (0.30lb)

Certification

CB, CE, FCC
