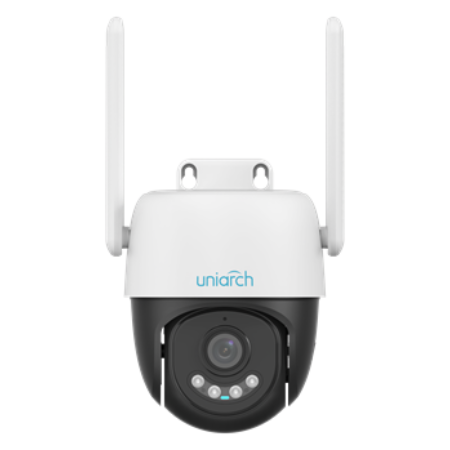

| | Uho P1G M3F4D EU |
| Camera |
| Max Resolution | 3 MP |
| Sensor | 1/3.0" CMOS |
| Min. Illumination | Colour: 0.003Lux (F1.6, AGC ON)
0 Lux with IR on |
| Day/Night | IR cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| S/N | > 52 dB |
| WDR | DWDR |
| Lens |
| Digital Zoom | 4X |
| Focal Length | 4.0 mm |
| Iris Type | Fixed |
| Iris | F1.6 |
| Field of View (H) | 75.0° |
| Field of View (V) | 40.0° |
| Field of View (D) | 80.7° |
| Lens Type | Fixed |
| DORI |
| DORI Distance (Lens) | 4.0mm |
| DORI Distance (Detect) | 66.7 m (218.7 ft) |
| DORI Distance (Observe) | 26.7 m (87.5 ft) |
| DORI Distance (Recognize) | 13.3 m (43.7 ft) |
| DORI Distance (Identify) | 6.7 m (21.9 ft) |
| Illuminator |
| Supplemental Light | Dual light |
| Illumination Distance (IR) | 30 m (98.4 ft) |
| Illumination Distance (Warm Light) | 30 m (98.4 ft) |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
| Video |
| Video Compression | Ultra 265, H.265, H.264 |
| Frame Rate | Main Stream: 3MP (2304*1296), Max 25fps; 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; |
| Video Bit Rate | 128 Kbps to 2048 Kbps |
| U code | Support |
| OSD | Up to 2 OSDs |
| Privacy Mask | Support (only NVR) |
| ROI | Support |
| Video Stream | Dual streams |
| Image |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| Dewarping | N/A |
| HLC | N/A |
| BLC | Support |
| Defog | Digital defog |
| Intelligent |
| Auto Tracking | Support |
| Events |
| Basic Detection | Motion detection, Ultra motion detection (based on human body and vehicle detection), High Decibel detection |
| General Function | IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Audio |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Storage |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR |
| Network |
| 4G Network Frequency | LTE FDD: B1/B3/B5/B7/B8/B20/B28
LTE TDD: B38/B40/B41 |
| 4G Network Standard | LTE FDD, LTE TDD |
| 4G Card Type | Nano SIM |
| Protocols | IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP, ICMP, ARP, UPnP, RTP, RTCP |
| Compatible Integration | API, SDK |
| Client | Uniarch client, Uniarch app |
| Web Browser | Plug in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| PTZ |
| Pan Range | 0° ~ 345° |
| Pan Speed | 1°/s ~ 40°/s
Preset speed: 40°/s |
| Tilt Range | 0° ~ 90° |
| Tilt Speed | 1°/s ~ 30°/s
Preset speed: 30°/s |
| Number of Presets | 20 |
| Interface |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Built in Mic | Support |
| Built in Speaker | Support |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base TX Ethernet |
| Certification |
| EMC | CE EMC (EN 55032, EN 61000 3 3, EN IEC 61000 3 2, EN 50130)
FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368 1) |
| Environment | CE RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
| Protection | IP66 (IEC 60529) |
| General |
| Power | DC 12V±25% |
| Power Consumption | 8.0 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | Φ110mm*141mm*151mm (Φ4.3”x 5.6”x 6.0”) |
| Weight | 0.39kg (0.85lb) |
| Working Environment | 30 ℃ to 60 ℃ ( 22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non condensing) |
| Storage Environment | 30 ℃ to 60 ℃ ( 22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non condensing) |
| Surge Protection | 4 KV |
| Reset Button | Support |
| LED Indicator | 1, red/blue |
