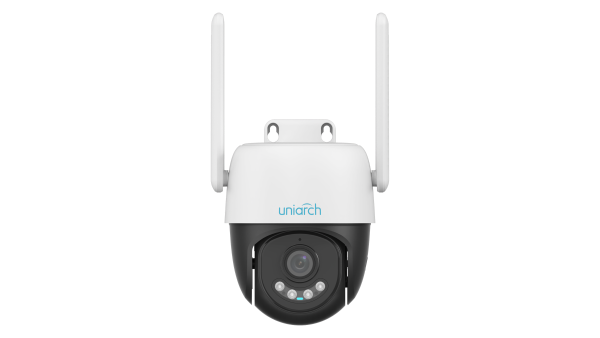

Uho-P1G-M3F4D-EU

Uho-P1G-M3F4D-EU

Features

• High quality image with 3MP, 1/3.0 " CMOS sensor
• 2304*1296@25fps in the main stream
• Support 4G access to the network
• Ultra 265, H.265, H.264
• Support digital WDR (Wide Dynamic Range)
• Built-in Mic & Speaker, support two-way audio, offer better interaction
• Support sound and light warning, makes warning and alarming more noticeable
• Smart IR, up to 30 m (98 ft) IR and 30 m (98 ft) warm light distance, suitable for more scenes
• Supports 512 GB Micro SD card
• IP66 ingress protection

Specifications

 Uho-P1G-M3F4D-EU
Camera
Max Resolution3 MP
Sensor1/3.0" CMOS
Min. IlluminationColour: 0.003Lux (F1.6, AGC ON)
0 Lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 to 1/100000 s
S/N> 52 dB
WDRDWDR
Lens
Digital Zoom4X
Focal Length4.0 mm
IrisF1.6
Field of View (H)75.0°
Field of View (V)40.0°
Lens TypeFixed
Iris TypeFixed
DORI
DORI Distance (Lens)4.0mm
DORI Distance (Detect)66.7 (218.7 ft)
DORI Distance (Observe)26.7 (87.5 ft)
DORI Distance (Recognize)13.3 (43.7 ft)
DORI Distance (Identify)6.7 (21.9 ft)
Illuminator
Illumination Distance (IR)30 m (98.4 ft.)
Illumination Distance (Warm Light)30 m (98.4 ft.)
Wavelength850 nm
IR On/Off ControlAuto/Manual
Supplemental LightDual light
Video
Video CompressionUltra 265, H.265, H.264
Frame RateMain Stream: 3MP (2304*1296), Max 25fps; 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;
Video Bit Rate128 Kbps to 2048 Kbps
U-codeSupport
OSDUp to 2 OSDs
Privacy MaskSupport (only NVR)
ROISupport
Video StreamDual streams
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
DewarpingN/A
HLCN/A
BLCSupport
FlipNormal, Flip vertical, Flip horizontal, 180°
DefogDigital defog
Events
Basic DetectionMotion detection, Ultra motion detection (based on human body and vehicle detection), High-Decibel detection
General FunctionIP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Intelligent
Auto TrackingSupport
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate8 kHz
Network
4G Network FrequencyLTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
4G Network StandardLTE-FDD, LTE-TDD
4G Card TypeNano-SIM
ProtocolsIPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP, ICMP, ARP, UPnP, RTP, RTCP, Websocket
Compatible IntegrationAPI, SDK
ClientAPP, Uniarch client
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Storage
Edge StorageMicroSD, up to 512 GB
Network StorageANR
Interface
Audio I/ON/A
Alarm I/ON/A
Built-in MicSupport
Built-in SpeakerSupport
WIFIN/A
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Certification
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130)
FCC (FCC 47 CFR part15 B)
ProtectionIP66 (IEC 60529)
SafetyCE LVD (EN 62368-1)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
General
Power Consumption8.0 W
Power InterfaceØ5.5 mm coaxial power plug
PowerDC 12V±25%
Surge Protection4 KV
DimensionsΦ110mm*141mm*151mm (Φ4.3”x 5.6”x 6.0”)
Weight0.39kg (0.85lb)
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Reset ButtonSupport
LED Indicator1, red/blue
PTZ
Number of Presets20
Pan Range0° ~ 345°
Pan Speed1°/s ~ 40°/s
Preset speed: 40°/s
Tilt Range0° ~ 90°
Tilt Speed1°/s ~ 30°/s
Preset speed: 30°/s
