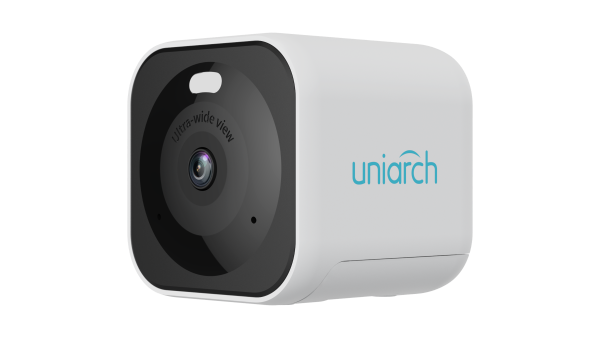

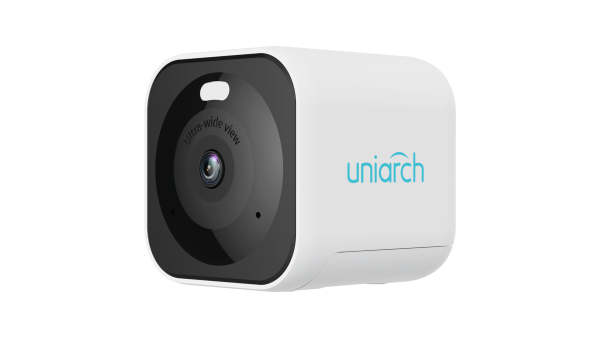

| Uho-C1-M4F2D | ||||||||
| Camera | ||||||||
| Max Resolution | 4 MP | |||||||
| Sensor | 1/3.0" CMOS | |||||||
| Min. Illumination | Colour: 0.003 lux (F2.0 AGC ON) 0 lux with IR on | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
| Lens | ||||||||
| Iris Type | Fixed | |||||||
| Iris | F2.0 | |||||||
| Field of View (H) | 132.2° | |||||||
| Field of View (V) | 71.5° | |||||||
| Field of View (D) | 157.7° | |||||||
| Lens Type | Fixed | |||||||
| DORI | ||||||||
| DORI Distance (Lens) | 2.1mm | |||||||
| DORI Distance (Detect) | 47.3 m (155.0 ft) | |||||||
| DORI Distance (Observe) | 18.9 m (62.0 ft) | |||||||
| DORI Distance (Recognize) | 9.5 m (31.0 ft) | |||||||
| DORI Distance (Identify) | 4.7 m (15.5 ft) | |||||||
| Illuminator | ||||||||
| Supplemental Light | Dual light | |||||||
| Illumination Distance (IR) | 10 m (32.8 ft) | |||||||
| Wavelength | 850 nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Video | ||||||||
| Video Compression | H.265, H.264 | |||||||
| Frame Rate | Main Stream: 2560*1440@15fps ; Sub Stream: 640*360@15fps | |||||||
| U-code | Support | |||||||
| OSD | Up to 1 OSD | |||||||
| ROI | N/A | |||||||
| Video Stream | Dual streams | |||||||
| Image | ||||||||
| Smart IR | Support | |||||||
| Flip | Normal, Flip vertical, Flip horizontal, 180° | |||||||
| Events | ||||||||
| Basic Detection | Crying detection, High-Decibel detection, Ultra motion detection (human/ vehicle/ pet detection) | |||||||
| Audio | ||||||||
| Audio Compression | G.711U | |||||||
| Audio Bitrate | 64 Kbps | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 8 kHz | |||||||
| Interface | ||||||||
| Video Output | N/A | |||||||
| Built-in Mic | Support | |||||||
| Built-in Speaker | Support | |||||||
| WIFI | Support | |||||||
| Network | N/A | |||||||
| Storage | ||||||||
| Edge Storage | MicroSD, up to 512 GB | |||||||
| Network | ||||||||
| Wi-Fi | 2.4G Wi-Fi (IEEE802.11b/g/n/ax), built-in antenna | |||||||
| Compatible Integration | API | |||||||
| Client | APP | |||||||
| Wi-Fi | ||||||||
| Wireless Standards | IEEE802.11b/g/n/ax | |||||||
| Frequency Range | 2.4 GHz to 2.4835 GHz | |||||||
| Channel Bandwidth | 20/40 MHz Support | |||||||
| Modulation Mode | 802.11b: CCK 802.11g/n: OFDM 802.11ax: OFDMA | |||||||
| Wi-Fi Security | WPA-PSK/WPA2-PSK | |||||||
| Transmit Power | 802.11b: 17±1.5 dBm@11 Mbps802.11g: 16±1.5 dBm@54 Mbps802.11n: 16±1.5 dBm@MCS7802.11ax: 16±1.5 dBm@MCS11 | |||||||
| Receive Sensitivity | 802.11b: -90 dBm@11 Mbps (Typical)802.11g: -75 dBm@54 Mbps (Typical)802.11n: -74 dBm@150 Mbps (Typical)802.11ax: -62 dBm@MCS11, HE40 (Typical) | |||||||
| Transmission Rate | 802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 150 Mbps802.11ax: up to 270 Mbps | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032, EN 61000-3-2, EN IEC 61000-3-3, EN 50130) FCC (SDoC 47 CFR Part 15, Subpart B) | |||||||
| RF | FCC ID (FCC CFR 47 part15 ,SubpartC)CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN IEC 62311) | |||||||
| Safety | CE LVD (EN IEC 62368-1) | |||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||||
| General | ||||||||
| Material | Plastic | |||||||
| Power | DC 5V/1.5A USB typeA-C interface | |||||||
| Power Consumption | Max 2.9W | |||||||
| Dimensions | Φ60mm*60mm*60mm (Φ2.4”x 2.4”x 2.4”) | |||||||
| Weight | 0.09 kg (0.2 lb) | |||||||
| Working Environment | -10 ℃ to 50 ℃ (14 ℉ to 122 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Storage Environment | -10 ℃ to 50 ℃ (14 ℉ to 122 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Reset Button | Support | |||||||
| LED Indicator | 1, red/blue | |||||||
