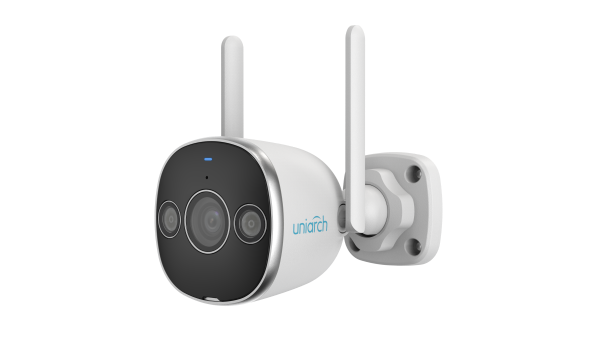

Uho-B2D-M5F3D

Uho-B2D-M5F3D

Features

• High quality image with 5MP, 1/3"CMOS sensor
• 5MP (2880*1620)@25/20fps; 4MP (2560*1440)@25/20fps; 3MP (2304*1296)@30/25fps; 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Built-in Mic
• Built-in Speaker
• Smart IR, up to 20m (66ft) IR distance
• Warm Light, up to 10m (33ft) warm light distance
• Support Dual Light mode, switch between IR and warm lights when the preset is triggered.
• Support 512 G Micro SD card
• Wi-Fi connection and easy installation
• IP67 protection
• 3-Axis

Specifications

 Uho-B2D-M5F3DUho-B2D-M5F4D
Camera
Max Resolution5 MP
Sensor1/3.0" CMOS
Min. IlluminationColour: 0.003 lux (F1.6 AGC ON)
0 lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment AnglePan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
S/N>52 dB
WDRDWDR
Lens
Focal Length2.8 mm4.0 mm
Iris TypeFixed
IrisF1.6
Field of View (H)97.0°79.0°
Field of View (V)52.6°42.3°
Field of View (D)107.5°85.1°
DORI
DORI Distance (Lens)2.8mm4.0mm
DORI Distance (Detect)63.090.0
DORI Distance (Observe)25.236.0
DORI Distance (Recognize)12.618.0
DORI Distance (Identify)6.39.0
Illuminator
Supplemental LightDual light
Illumination Distance (IR)20 m (65.6 ft)
Illumination Distance (Warm Light)10 m (32.8 ft)
Wavelength850 nm
IR On/Off ControlAuto/Manual
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Frame RateMain Stream: 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 25fps; 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
Video Bit Rate128 Kbps to 6144 Kbps
U-codeSupport
OSDUp to 4 OSDs
Privacy MaskSupport (only NVR)
ROIUp to 8 areas
Video StreamDual streams
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal, Flip vertical, Flip horizontal, 180°
DewarpingN/A
HLCN/A
BLCN/A
DefogDigital defog
Events
Basic DetectionMotion detection, Ultra motion detection, Audio detection, Tampering alarm
General FunctionIP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate8 kHz
Storage
Edge StorageMicroSD, up to 512 GB
Network StorageANR
Network
Wi-Fi2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna
ProtocolsIPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP
Compatible IntegrationAPI, SDK
User/HostUp to 32 users, 2 user levels: administrator and common user
ClientAPP, Uniarch client
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Wi-Fi
Wireless StandardsIEEE802.11b/g/n
Frequency Range2.4 GHz to 2.4835 GHz
Channel Bandwidth20 MHz Support
Modulation Mode802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM/HT
Wi-Fi Security64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power802.11b: 17±1.5 dBm@11 Mbps802.11g: 14±1.5 dBm@54 Mbps802.11n: 12.5±1.5 dBm@150 Mbps
Receive Sensitivity802.11b: -90 dBm@11 Mbps (Typical)802.11g: -75 dBm@54 Mbps (Typical)802.11n: -74 dBm@150 Mbps (Typical)
Transmission Rate802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 150 Mbps
Interface
Audio I/ON/A
Alarm I/ON/A
Built-in MicSupport
Video OutputN/A
Built-in SpeakerSupport
WIFISupport
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Certification
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
FCC (FCC 47 CFR part15 B)
RFFCC ID (FCC CFR 47 part15 C)CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311)
SafetyCE LVD (EN 62368-1)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529)
General
PowerDC 12V±25%
Power consumption: Max 5.7W
Power InterfaceØ5.5 mm coaxial power plug
MaterialMetal + Plastic
Dimensions148 × 78 × 78mm (5.8” × 3.1” × 3.1”)
Weight0.31 kg (0.68 lb)
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection4 KV
Reset ButtonSupport
LED Indicator1, red/blue
