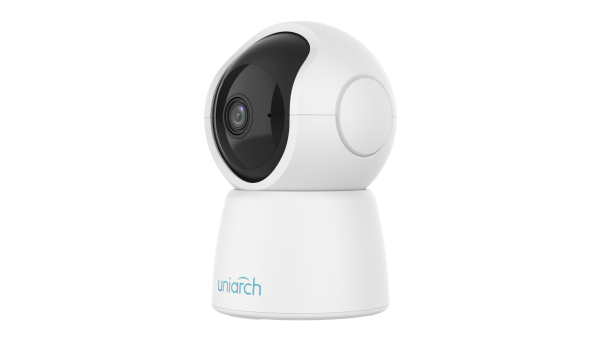

Uho-S2E-M3-A

Uho-S2E-M3-A

Features

• High quality image with 3MP, 1/3" CMOS sensor
• 3MP (2304*1296)@25/20fps; 2MP (1920*1080)@30/25fps; 720P (1280*720) @30/25fps
• Ultra 265, H.265, H.264
• Built in Mic & Speaker, support two way audio, offer better interaction
• IR night vision, up to 10m (33ft) IR distance
• Support 512 G Micro SD card
• Wi Fi connection and easy installation

Specifications

 Uho-S2E-M3-A
Camera
Max Resolution3 MP
Sensor1/3.0" CMOS
Min. IlluminationColour: 0.02 lux (F2.0, AGC ON)
0 lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1/4 to 1/100000 s
S/N> 52 dB
WDRDWDR
Lens
Focal Length4.0 mm
IrisF2.0
Field of View (H)67.3°
Field of View (V)37.2°
Field of View (D)77.8°
Lens TypeFixed
Iris TypeFixed
Illuminator
Illumination Distance (IR)10 m (32.8 ft)
Wavelength850 nm
IR On/Off ControlAuto/Manual
Supplemental LightIR
Video
Video CompressionUltra 265, H.265, H.264
Frame RateMain Stream: 3MP (2304*1296), Max 25fps; 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps
Video Bit Rate128 Kbps to 2048 Kbps
U-codeSupport
OSDUp to 2 OSDs
Privacy MaskSupport (only NVR)
ROISupport
Video StreamDual streams
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal, Flip vertical, Flip horizontal, 180°
DewarpingN/A
HLCN/A
BLCSupport
DefogDigital defog
Events
Basic DetectionMotion detection, Ultra motion detection (human/ vehicle/ pet), Crying detection, High-Decibel detection
General FunctionIP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Intelligent
Auto TrackingSupport
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate8 kHz
Storage
Edge StorageMicroSD, up to 512 GB
Network StorageANR
Network
Wi-Fi2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna
ProtocolsIPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP
Compatible IntegrationAPI, SDK
ClientAPP, Uniarch client
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Wi-Fi
Wireless StandardsIEEE802.11b/g/n
Frequency Range2.4 GHz to 2.4835 GHz
Channel Bandwidth20 MHz Support
Modulation Mode802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM/HT
Wi-Fi Security64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power802.11b: 17±1.5 dBm@11 Mbps802.11g: 14±1.5 dBm@54 Mbps802.11n: 12.5±1.5 dBm@150 Mbps
Receive Sensitivity802.11b: -90 dBm@11 Mbps (Typical)802.11g: -75 dBm@54 Mbps (Typical)802.11n: -74 dBm@150 Mbps (Typical)
Transmission Rate802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 150 Mbps
PTZ
Pan Range0° ~ 338°
Pan Speed17°/s ~ 50°/s
Preset speed: 50°/s
Tilt Range-5° ~ 55°
Tilt Speed17°/s ~ 50°/s
Preset speed: 50°/s
Number of Presets20
Interface
Audio I/ON/A
Alarm I/ON/A
Built-in MicSupport
Built-in SpeakerSupport
WIFISupport
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Certification
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
FCC (FCC 47 CFR part15 B)
RFFCC ID (FCC CFR 47 part15 C)
CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311)
SafetyCE LVD (EN 62368-1)
EnvironmentCE-RoHS (2011/65/EU; (EU) 2015/863) ; WEEE (2012/19/EU)
General
Power ConsumptionMax 7.5W
PowerDC 5V/1.5A
Micro USB interface
LED Indicator1, red/blue
DimensionsΦ80 x 120mm (Ø3.1” x 4.8”)
Weight0.18kg(0.40lb)
Working Environment-10 ℃ to 50 ℃ (14 ℉ to 122 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-10 ℃ to 50 ℃ (14 ℉ to 122 ℉), Humidity: ≤ 95% RH (non-condensing)
Reset ButtonSupport
