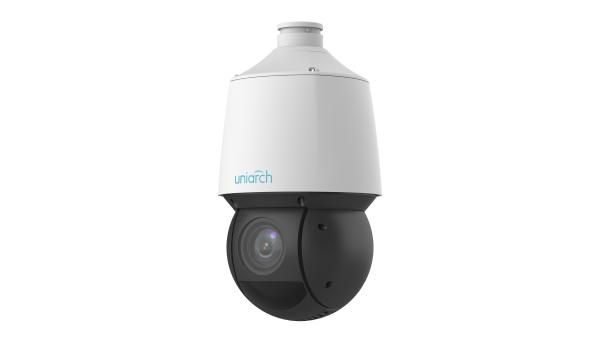

IPC-P413-X20K

IPC-P413-X20K

Features

• High quality image with 3 MP, 1/2.8" CMOS sensor
• 2304 × 1296@30 fps in the main stream
• 20X optical zoom allows for closer viewing of subjects
• Smart intrusion prevention, supports false alarm filtering, including cross line, intrusion, enter area, leave area detection
• automatic selection of best snapshots
• People counting, supports people flow counting and crowd density monitoring, suitable for different statistical scenarios
• Up to 120 dB optical WDR (wide dynamic range)
• Smart IR, up to 100 m (328 ft) IR distance
• DC 12 V±25%, PoE+ (IEEE 802.3at)
• MicroSD, up to 256 GB
• IP66 ingress protection

Specifications

 IPC-P413-X20K
Camera
Sensor1/2.8", 3.0 megapixel, progressive scan, CMOS
Min. IlluminationColor: 0.003 Lux (F1.7, AGC ON), 0 Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 to 1/100000 s
WDR120 dB
S/N>52 dB
Lens
Focal Length5 to 100 mm
Optical Zoom20X
IrisF1.7 to F2.8
Field of View (H)51.70° to 3.85°
Field of View (V)30.49° to 2.16°
Field of View (D)63.60° to 4.54°
DORI
DORI Distance (Lens)5 to 100 mm
DORI Distance (Detect)77.6 m to 1551.7 m (254.5 ft. to 5091.0 ft)
DORI Distance (Observe)31.0 m to 620.7 m (101.8 ft. to 2036.4 ft)
DORI Distance (Recognize)155.5 m to 310.3 m (510.2 ft. to 1018.0 ft)
DORI Distance (Identify)7.8 m to 155.2 m (25.6 ft. to 509.2 ft)
Video
Privacy Mask24 areas, up to 4 areas per scene
Video CompressionH.265, H.264, MJPEG
Frame RateMain Stream: 3 MP (2304 × 1296), max. 30 fps
Sub Stream: 720P (1280 × 720), max. 30 fps
Third Stream: D1 (720 × 576), max. 30 fps
Video Bit Rate128 Kbps to 16 Mbps
ROISupport
Video StreamTriple streams
OSDUp to 8 OSDs
Intelligent
Auto TrackingSupport
Smart Intrusion PreventionCross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People CountingSupport people flow counting and crowd density monitoring
Exception DetectionObject removed, Object Left Behind
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
FlipNormal, Flip vertical, Flip horizontal, 180°
HLCSupport
BLCSupport
Smart IRSupport
DefogDigital defog
Events
Basic DetectionMotion detection, Tampering alarm, Object removed, Object Left Behind
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication
Storage
Edge StorageMicroSD, up to 512 GB
Network StorageANR
Illuminator
IR On/Off ControlAuto/Manual
Wavelength850 nm
Illumination Distance (IR)Up to 100m (328 ft) IR range
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, RTMP, SSL/TLS, IPv6
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
ClientAPP, Uniarch client
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
PTZ
Number of Presets1024
Preset Patrol16 patrols, up to 64 presets for each patrol
Route Patrol16 patrols, up to 32 actions for each patrol
Recorded Patrol16 patrols, up to 128 actions for each patrol
Patrol Stay Time15 s to 1800 s
Preset Image FreezeN/A
Home PositionSupport
Pan Range360° (endless)
Tilt Range-15° to 90° (auto reverse)
Pan Speed0.1°/s to 80°/s
Tilt Speed0.1°/s to 80°/s
Interface
Audio I/ON/A
Alarm I/ON/A
Serial PortN/A
Built-in MicN/A
Built-in SpeakerN/A
WIFIN/A
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Video OutputN/A
General
PowerDC 12 V (±25%), PoE+ (IEEE 802.3at)
Power ConsumptionMax. 20 W
Power InterfaceØ5.5 mm coaxial power plug
DimensionsØ162 mm × 293 mm (Ø 6.4" × 11.5") (Ø × H)
Weight1.79 kg (3.95 lb)
Working Environment-40 ℃ to 65 ℃ (-40 ℉ to 149 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection6 KV
Reset ButtonSupport
HeaterSupport
Configurable
P/NSupport
