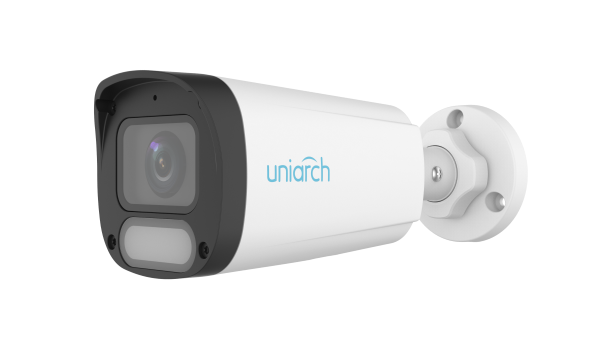

IPC-B244-ADF28(40)K-WP

IPC-B244-ADF28(40)K-WP

Features

• High quality image with 4 MP, 1/1.8" CMOS sensor and F1.0 large aperture lens
• 4 MP (2560 × 1440)@25/20 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• Supports ColorHunter with Wise-ISP technology, deeply optimizing color, detail, and smear effects in extremely low-light scenes
• 120 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Built-in mic
• White light, up to 30 m (98.4 ft) warm light distance
• MicroSD, up to 512 GB
• IP67 protection
• Supports PoE power supply
• 3-axis

Specifications

 IPC-B244-ADF28K-WPIPC-B244-ADF40K-WP
Camera
Max Resolution4 MP
Sensor1/1.8" CMOS
Min. IlluminationColor: 0.0003 Lux (F1.0, AGC ON)
ShutterAuto/Manual, 1 to 1/100000 s
Adjustment AnglePan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N> 52 dB
WDR120 dB
Lens
Focal Length2.8 mm4.0 mm
Iris TypeFixed
IrisF1.0
Field of View (H)107.6°92.1 °
Field of View (V)58.4°49.0°
Field of View (D)126.4 °108.3°
Lens TypeFixed
DORI
DORI Distance (Lens)2.8 mm4 mm
DORI Distance (Detect)43.4 m (142.4 ft.)62.1 m (203.7 ft.)
DORI Distance (Observe)17.4 m (57.1 ft.)24.8 m (81.4 ft.)
DORI Distance (Recognize)8.7 m (28.5 ft.)12.4 m (40.7 ft.)
DORI Distance (Identify)4.3 m (14.1 ft.)6.2 m (20.3 ft.)
Illuminator
Supplemental LightWarm light
Light On/Off ControlAuto/Manual
Illumination Distance (Warm Light)30 m (98.4 ft)
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Frame RateMain Stream: 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps;
Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Video Bit Rate128 Kbps to 6144 Kbps
U-codeSupport
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROISupport
Video StreamDual streams
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Smart IlluminationSupport
Digital Noise Reduction2D/3D DNR
FlipNormal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
DewarpingN/A
HLCSupport
BLCSupport
DefogDigital defog
Events
Basic DetectionMotion detection, Ultra motion detection, Tampering alarm, Audio detection
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioN/A
SuppressionSupport
Sampling Rate8 kHz
Storage
Edge StorageMicroSD, up to 512 GB
Network StorageANR, NAS (NFS)
Network
ProtocolsIPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
ClientAPP, Uniarch client
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/ON/A
Alarm I/ON/A
Serial PortN/A
Built-in MicSupport
Built-in SpeakerN/A
WIFIN/A
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Video OutputN/A
Certification
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
FCC (FCC 47 CFR part15 B)
SafetyCE LVD (EN 62368-1)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529)
General
PowerDC 12 V±25%, PoE (IEEE 802.3af)
Power ConsumptionMax. 3.5 W
Power InterfaceØ5.5 mm coaxial power plug
Dimensions206 mm × 73 mm × 73 mm (8.1" × 2.9" × 2.9") (L × W × H)
Weight0.30 kg (0.66 lb)
MaterialGraphene + Plastic
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection4 KV
Reset ButtonSupport
Web Client Language13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian
